Waukesha L7042 GSI S5 / Ariel

7042 Motor

  • 1500 HP
  • 7.9 MMSCFD @1200psig
  • 9.0 MMSCFD @800psig
  • 0.15/- NOx (g/Hp-Hr)
  • 0.3/- CO (g/Hp-Hr
  • 0.3/- NMHC (g/Hp-Hr

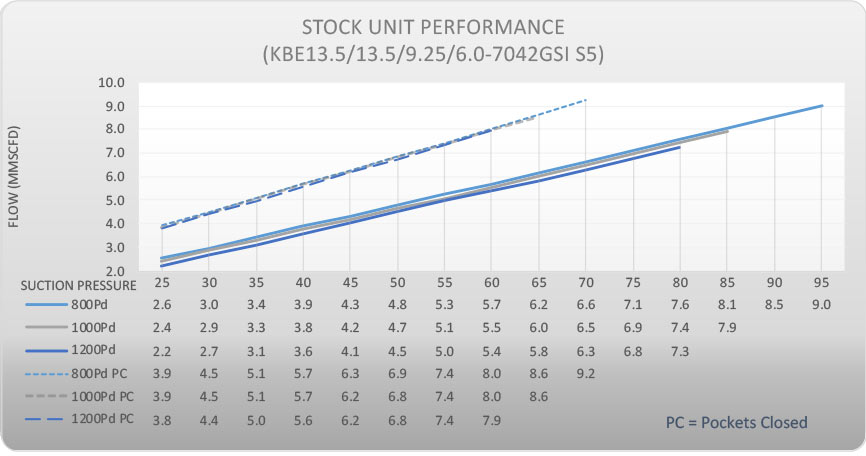

7042 stats graph

Above stock unit performance is typical and can be optimized around other conditions. Contact NGSG for your specific needs.

NGSG SMART System Highlights:

  • Reduce shutdowns by as much as 25% over industry standard compressors*
    • 100% turn down of flow - 24/7/365
    • Elimination of pressure, horsepower, and rod load related shutdowns
    • Rock-solid pressure control over the widest range of process needs & upsets
    • Robust freeze avoidance for uninterrupted operation in cold weather
    • Run through fluctuating BTU fuel gas upsets rather than shutting down
  • Maximum power and flow optimized over the entire range of process conditions – done automatically
  • When N+1 units are installed, compressor flow reliability approaches 100% as the multiple machines automatically increase flow to fill gap when unit goes down
  • Dewpoint control – Temperature process control to within 2-4°F of setpoint
  • Telemetry via cellular or satellite of package data (includes ALL engine panel information too):
    • Remote setpoint allowable
    • Monthly sorting and tally of alarms/shutdowns for continuous improvement
    • Both, customer connection at panel & web-based access to real time and historical data

Environmental Engineered Aspects:

  • Pneumatic end devices made electric (standard)*
  • Electric start*
  • Crank case and packing vent capture (option)*
  • Lower engine emissions
  • Electric drive (option)*
  • Designed to eliminate future methane taxes and retain gas product economically

Package Features:

  • All vessels meet ASME Section VIII standards with 1/8” corrosion allowance
  • All vessels meet API 11P Class C standard
  • All piping systems meet ASME B31.3 standard
  • API 618 Design Approach 2 pulsation and mechanical analysis performed for smooth operations
  • Standard design to maximize parts availability and minimize downtime
  • Suction control and recycle valves – Murphy C5 controlled. Recycle valve is mounted on skid
  • Inlet strainer with break out spool. DP pressure monitoring through controller for alarm to clean
  • DP pressure and temperature monitoring across exhaust catalyst
  • Rigid four beam skid with 1.5 times capacity environmental containment designed for packed earthen pad
  • NGSG custom two stage coalescing fuel gas scrubber for maximum engine protection
  • Electrical rating service of Class 1, Group D, Division II areas*
  • NGSG custom designed, Murphy C5 controlled inner and outer louvers, separate for each process gas section – These louver sections do not require frequent adjustments and repairs like industry standard louvers
  • No hot gas bypass required
  • NGSG’s custom flooded skirt heat tracing to avoid package liquid line freeze ups
  • Critical Grade engine exhaust silencer
  • Murphy C5 Controller - fully integrated with engine messages and alarms
  • Cold weather starting capability - Kim hot start for oil and jacket water (Option)
  • 500 psig MAWP blow case on separate skid (Option)

Driver: Waukesha L7042GSI S5

  • Waukesha emPact Emissions Control System designed to achieve 0.15 g/bhp-hr NOx* and 0.3 g/bhp-hr CO*
  • ~80% Lower VOC emissions and 15% smaller carbon footprint
  • Electric start system with on board battery charger
  • Electric pre-lube system
  • +/- 150btu fuel swing capable
  • No fuel derate until 2300BTU (HD-5 Propane)
  • Lower fuel consumption
  • BMEP of 141 psi and 1200rpm
  • ESM2 Engine Management

Compressor: Ariel KBE/4 “World Standard Compressors”

  • 2680 BHP 4-Throw Frame
  • 700-1400 RPM
  • 5.0” Stroke
  • 74,000 lbf Total Rod Load (40,000 lbf Compression, 37,000 lbf Tension)
  • VVCP’s on all cylinders
Compression Stage Cylinder MAWP
1st Stage 13-1/2E-13.5” /13-1/2E-13.5” 400 / 400
2nd Stage 9-1/4E-9.25” 935
3rd Stage 6-3/8E-6.0” 1650


Cooler: 168” ETR OFE Forced Draft Vertical Discharge

Minimum design parameters:

  • 3,000’ elevation
  • 110°F ambient with 5% excess cooler duty
  • Engine driven cooler fan
  • All tubes SA 214 Carbon Steel with Aluminum fins
  • Individual auto louvers inside and outside each gas section
  • ASME Code Stamp per ASME Section VIII, Div 1 with Nat’l Board Registered


*Contact NGSG for details

** Size may change slightly due to minor improvements. Confirm size with NGSG drawings
