Package Features:

• All vessels are designed and built to meet ASME Section VIII with 1/8” corrosion allowance
• Suction vessel designed to API 11P Class 3
• All piping meets or exceeds ASME B31.3
• API 618 Design Approach 2 pulsation and mechanical analysis performed for smooth operations
• Rigid skid with 1.5 times capacity environmental containment designed for packed earthen pad.
• Skid edge air connection for pneumatic end devices. (Air compressor not included)
• Pre‐Lube pump on skid
• M‐Link telemetry
• On skid 500 psig MAWP blow case (option)

Driver: 250hp Motor @1800 rpm

• TEFC, 3/60/460 447TY frame (starter available if needed)
• Inverter Rated
• 4140 Shaft
• Bearing and Winding RTD’s
• Bearing Heater

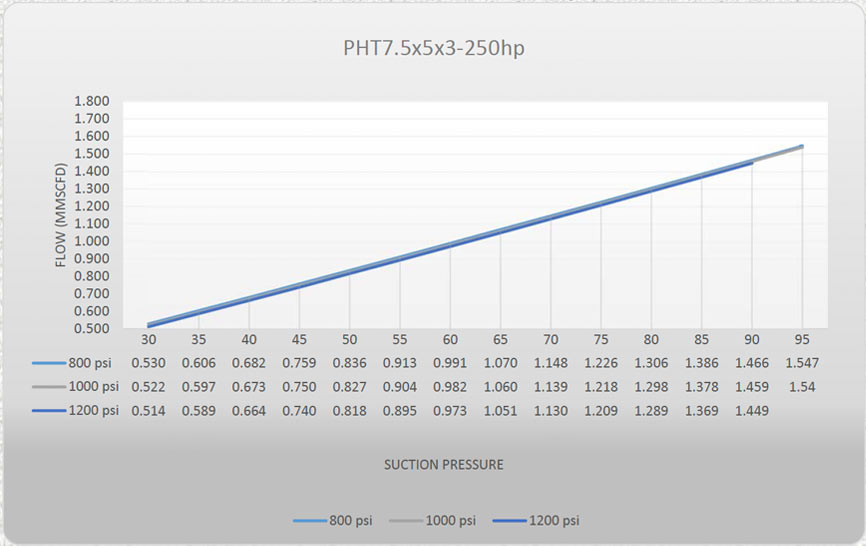

Compressor: CiP PHT/2

• 250 BHP 2‐Throw Frame
• 50‐1800 RPM
• 3” Stroke
• 20,000 lbf Total Rod Load (11,500 lbf Compression, 10,500 lbf Tension)
• VVCP on 1st stage cylinders
• (7) Spacers on 3rd stage cylinder

Cooler: 48” AXH Air‐Coolers or equal

Minimum design parameters:

• 3,000’ elevation
• 110°F ambient
• All tubes SA 214 carbon steel with aluminum fins
• Auto louvers inside and outside each gas section - each section controlled separately for new units
• ASME Code Stamp per ASME Section VIII, Div 1 with Nat’l Board Registered

NGSG SMART System Highlights (if SMART equipped):

Reduce shutdowns by as much as 25% over industry standard compressors

• 100% turn down of flow - 24/7/365
• Elimination of pressure, horsepower, and rod load related shutdowns
• Rock-solid pressure control over the widest range of process needs & upsets
• Robust freeze avoidance for uninterrupted operation in cold weather

Maximum power and flow optimized over the entire range of process conditions – done automatically

When N+1 units are installed, compressor flow reliability approaches 100% as the multiple machines automatically increase flow to fill gap when unit goes down

Telemetry via cellular or satellite of package data (includes ALL engine panel information too):

• Remote setpoint allowable
• Monthly sorting and tally of alarms/shutdowns for continuous improvement
• Both, customer connection at panel & web-based access to real time and historical data

Suction control and recycle valves. Recycle valve mounted on skid

*Contact NGSG for details
