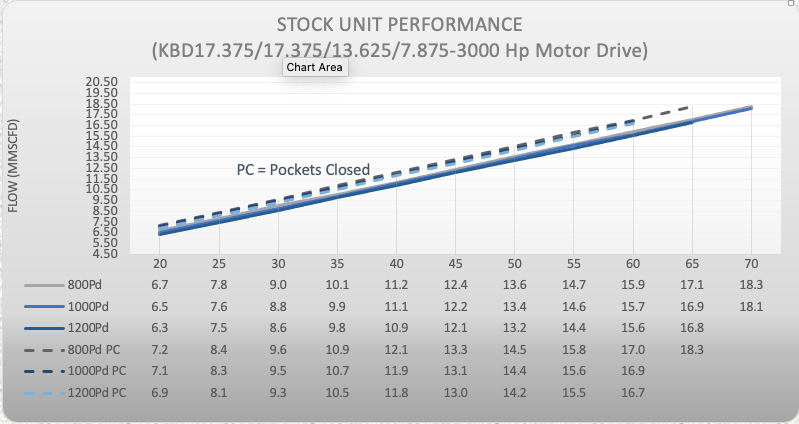

Above stock unit performance can be optimized around other conditions . Contact NGSG for your specific needs.

NGSG SMART System Highlights:

• Reduce shutdowns by as much as 25% over industry standard compressors*
• 100% turn down of flow - 24/7/365
• Elimination of pressure, horsepower, and rod load related shutdowns
• Rock-solid pressure control over the widest range of process needs & upsets
• Robust freeze avoidance for uninterrupted operation in cold weather
• Run through fluctuating BTU fuel gas upsets rather than shutting down
• Maximum power and flow optimized over the entire range of process conditions - done automatically
• When N+l units are installed, compressor flow reliability approaches 100°/oa s the multiple machines
  automatically increase flow to fill gap when unit goes down
• Dewpoint control - Temperature process control to within 2-4°F of setpoint
• Telemetry via cellular or satellite of package data (includes ALL engine panel information too):
• Remote setpoint allowable
• Monthly sorting and tally of alarms/shutdowns for continuous improvement
• Both, customer connection at panel & web-based access to real time and historical data

Environmental Engineered Aspects:

• 480vac end devices - no pneumatics
• PVRU for crank case and packing vent capture
• Integrated power distribution rack for end devices and PVRU

Package Features:

• All vessels meet ASME Section VIII standards with 1/8” corrosion allowance
• All piping systems meet ASME B31.3 standard
• API 618 Design Approach 3 pulsation and mechanical analysis performed for smooth operations
• Standard design to maximize parts availability and minimize downtime
• Suction control and recycle valves – Murphy C5 controller. Recycle valve is mounted on skid
• Inlet strainer with break out spool. DP pressure monitoring through controller for alarm to clean
• Rigid four beam skid with 1.5 times capacity environmental containment designed to mount on packed earthen pad
• Electrical rating service of Class 1, Group D, Division II areas
• NGSG custom designed, Murphy C5 controlled inner and outer louvers, separate for each process gas section – These louver sections do not require frequent adjustments and repairs like industry standard louvers
• No hot gas bypass required
• Murphy C5 Controller - fully integrated
• 500 psig MAWP blow case on separate skid (Option)

Driver: TECO 2500hp Motor @1200 rpm

• TEFC, 3/60/4160 WPII Enclosure
• Inverter Rated
• 4140 Shaft
• Bearing and Winding RTD' s
• Bearing Heater

Compressor: Ariel KBD/4 "World Standard Compressors"

• 4800 BHP 4-Throw Frame
• 600-1200 RPM
• 6.0'' Stroke
• 132,000 lbf Total Rod Load (69,000 lbf Compression, 66,000 lbf Tension)
• VVCP's on all cylinders

Cooler: 132-3FX ECS Forced Draft Vertical Discharge

Minimum design parameters:

• 3,000' elevation
• 110°F ambient with 5% excess cooler duty
• Electric motor driven cooler section fans
• All tubes SA 214 Carbon Steel with Aluminum fins
• Individual auto louvers inside and outside each gas section
• ASME Code Stamp per ASME Section VIII, Div 1 with Nat'I Board Registered

*Contact NGSG for details
** Size may change slightly due to minor improvements . Confirm size with NGSG drawings
